OVERVIEW

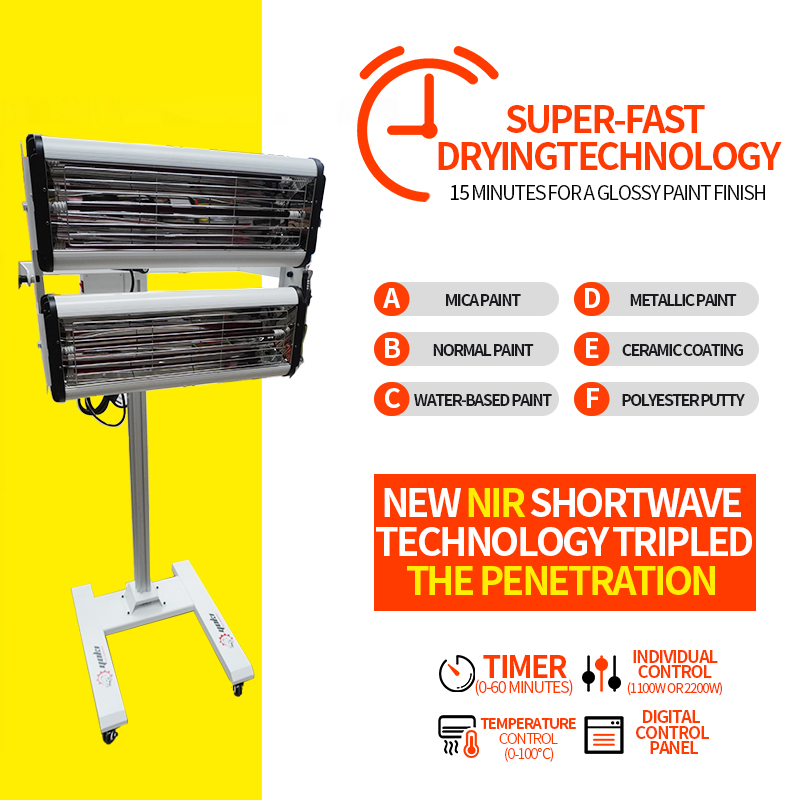

A twin-cassette shortwave infrared curing lamp for automotive body shops. The adjustable lamp assembly and stand support controlled drying over medium-sized repair areas while the timer and temperature range help technicians manage the curing process.
FEATURES
Twin-cassette layout for broader, more even localised curing.
Adjustable stand and lamp positioning for workshop flexibility.
10-60 minute timer and 40-100 C temperature range.
Shortwave infrared operation for automotive paint drying and refinishing workflow.
SPECIFICATIONS
Product rating: 2000W
Curing time range: 10-60 minutes
Temperature range: 40-100 C
Infrared tube length: 500 mm
Curing area: 800 x 800 mm
External lead length: 2 m
Main package: 700 x 600 x 380 mm
Stand package: 63 x 63 x 1,560 mm
Gross weight: 29.2 kg
APPLICATIONS
Medium-area automotive paint drying
Body shop refinishing and panel repair workflow
Primer, paint and clear-coat curing where suitable
YOKI SUPPORT
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm current stock, electrical configuration and suitability for your workshop.
