OVERVIEW
A 500 kg manual hydraulic transmission jack for controlled removal, support and installation of gearboxes and driveline assemblies. Its compact wheeled base, adjustable saddle and multi-axis tilt support accurate positioning under a raised vehicle.
FEATURES
Large-diameter hydraulic cylinder reduces required operating pressure and supports long service life.
Precision-finished piston ram and sealing system support controlled lifting and lowering.
Stable mobile base provides access beneath workshop hoists.
Saddle tilt adjustment: 14 deg forward, 72 deg rearward, 31 deg right and 45 deg left.
Ergonomic pump handle supports practical workshop positioning and operation.
SPECIFICATIONS
Rated capacity: 500 kg
Minimum height: 865 mm
Maximum height: 1,765 mm
Net weight: 70 kg
Gross weight: 75 kg
Freight dimensions: 520 x 300 x 720 mm
APPLICATIONS
Gearbox removal and installation
Transmission and driveline support under a vehicle hoist
Automotive repair workshops and service bays
YOKI SUPPORT
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm current stock, configuration and suitability for your workshop.

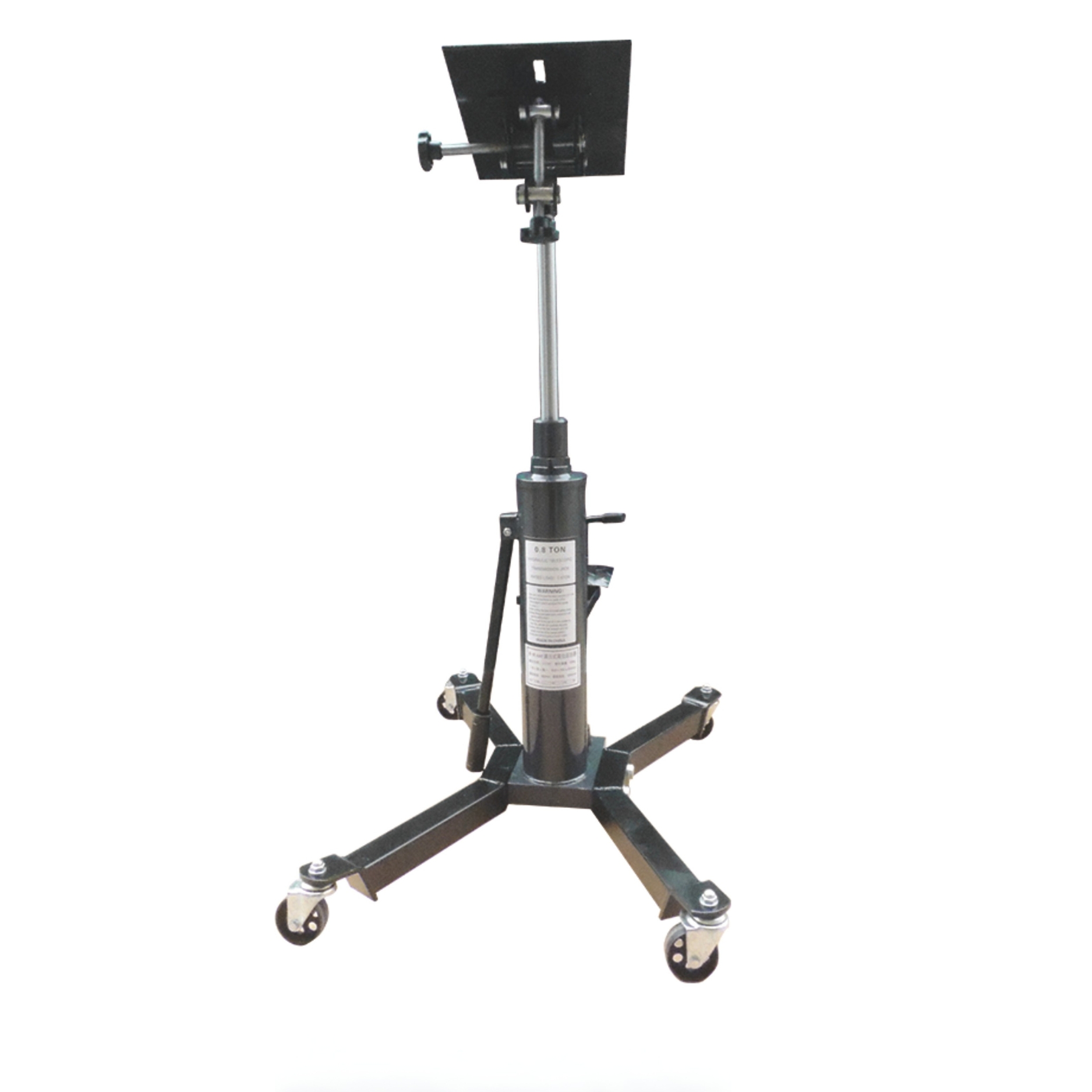

YOKI YS TJ 105 Heavy-Duty Transmission Jack 500kg
