OVERVIEW

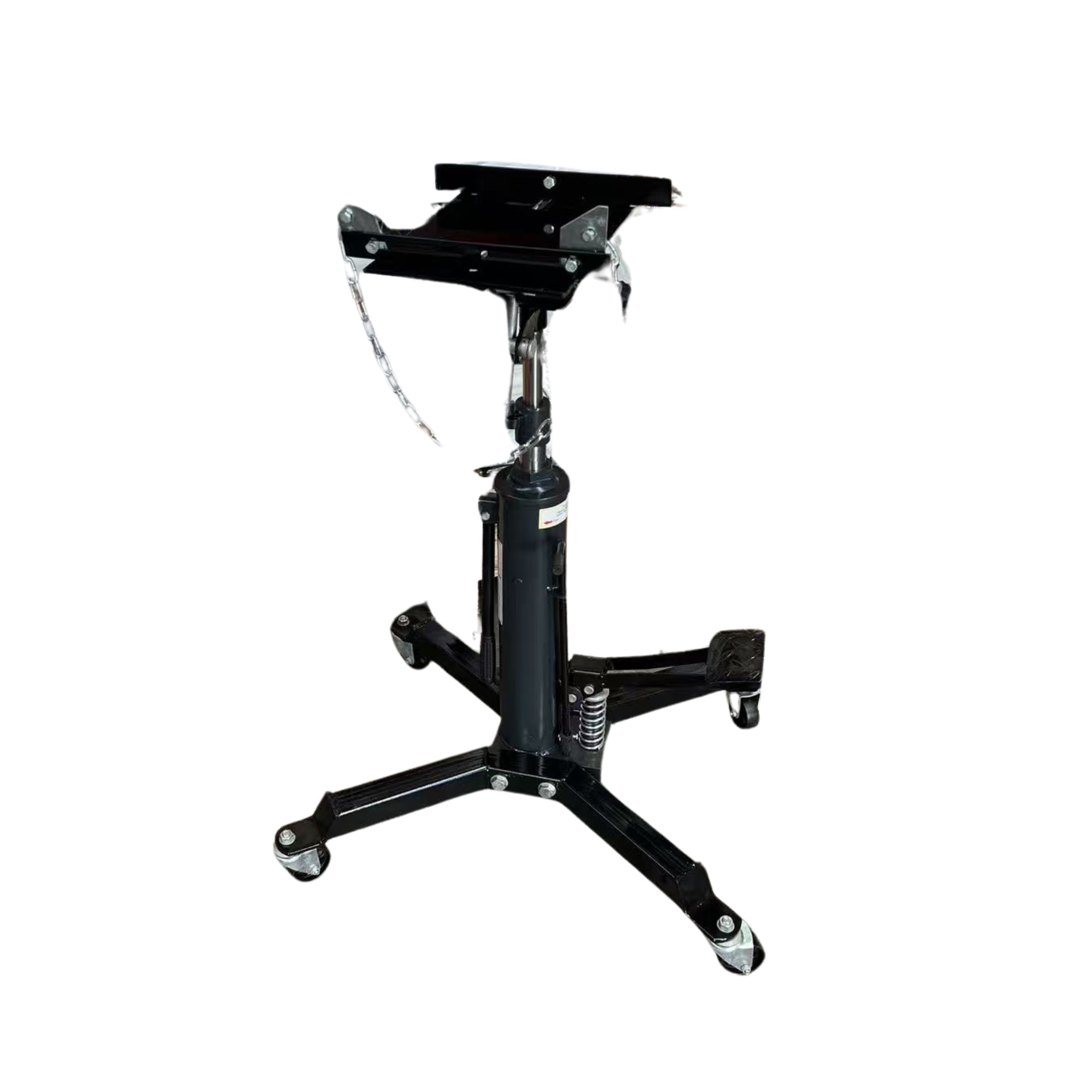

An 800 kg manual hydraulic transmission jack for controlled support and positioning of heavier gearboxes and driveline assemblies. The wheeled base, adjustable saddle and multi-axis tilt help technicians align components under a raised vehicle.
FEATURES
Large-diameter hydraulic cylinder reduces required operating pressure and supports long service life.
Precision-finished piston ram and sealing system support controlled lifting and lowering.
Stable mobile base supports heavier transmission and driveline work.
Saddle tilt adjustment: 14 deg forward, 72 deg rearward, 31 deg right and 45 deg left.
Ergonomic pump handle supports practical workshop positioning and operation.
SPECIFICATIONS
Rated capacity: 800 kg
Minimum height: 900 mm
Maximum height: 1,800 mm
Net weight: 75 kg
Gross weight: 80 kg
Freight dimensions: 520 x 300 x 720 mm
APPLICATIONS
Removal and installation of larger gearboxes
Transmission and driveline support under a vehicle hoist
Automotive repair workshops and service bays
YOKI SUPPORT
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm current stock, configuration and suitability for your workshop.
