OVERVIEW

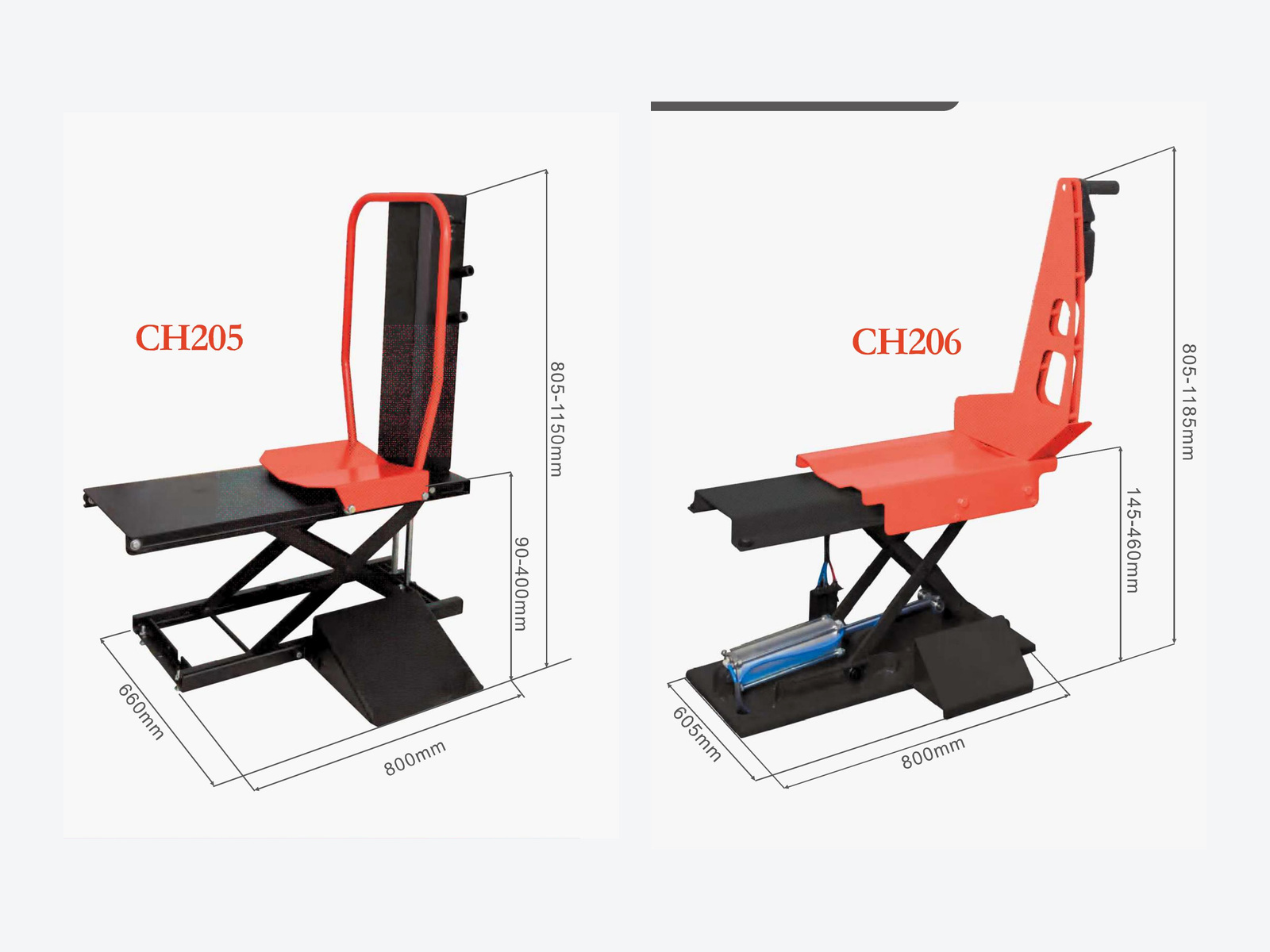

The ROADBUCK CH205 and CH206 are 75 kg pneumatic tyre lifters designed to reduce manual wheel handling around commercial wheel balancers. Their sliding platforms move laterally so operators can lift and position a wheel closer to the balancer spindle.
Both versions use a linear slide between the platform and lifting frame, an adjustable pneumatic pressure regulator and an aluminium-alloy cylinder. Air lines are routed through the drag-chain channel to reduce wear during repeated movement.
WORKSHOP BENEFITS
Supports safer loading and positioning of heavy wheel and tyre assemblies.
The laterally moving platform helps align the wheel with a balancing-machine spindle.
Lengthening accessories allow the platform to suit wider wheel-balancer bases.
Pneumatic speed adjustment gives the operator greater control during lifting.
ROADBUCK CH205 PNEUMATIC TYRE LIFTER
PRODUCT DETAILS
75 kg rated lifting capacity
Laterally sliding wheel platform
Linear slide structure with low operating clearance
Built-in pneumatic pressure regulator
Aluminium-alloy lifting cylinder
Protected air-line routing through the drag-chain channel
ROADBUCK CH206 PNEUMATIC TYRE LIFTER
SPECIFICATIONS
Lifting capacity: 75 kg
CH205 maximum lifting height: 330 mm
CH206 maximum lifting height: 315 mm
CH205 maximum lateral movement: 810 mm
CH206 maximum lateral movement: 1,050 mm
Drive method: Pneumatic
Operating air pressure: 6-8 bar
Net weight: CH205 55 kg / CH206 50 kg
APPLICATIONS
Truck and commercial wheel-balancer loading support
Tyre shops handling heavy wheel and tyre assemblies
Wheel positioning for balancing-machine spindle alignment
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm stock availability, electrical configuration and suitability for your workshop.
