OVERVIEW

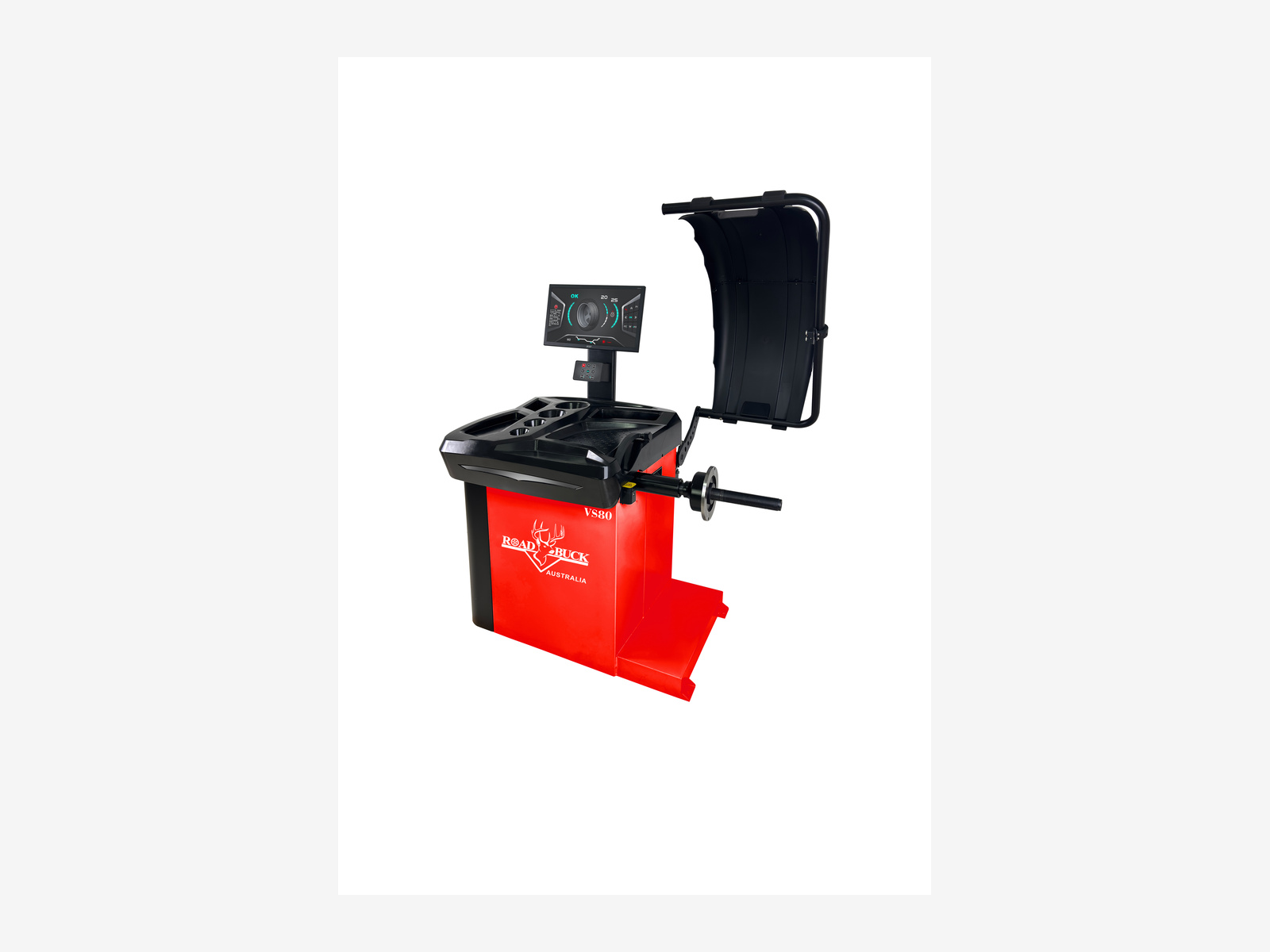

The YOKI OP-V800 is an Android-based professional wheel balancer developed from the supplier V800 platform. Its LCD interface and independent keypad provide a clear operating workflow, with multiple language support and automatic measurement of wheel diameter, distance and width.
The 3D laser system guides adhesive-weight placement, while motor braking and the LED work light assist correction at the detected imbalance position. Dynamic, static, ALU and ALU-S programmes support common passenger and alloy wheel balancing work.
AUTOMATIC WHEEL MEASUREMENT
WORKSHOP BENEFITS
Automatic dimensional input reduces manual setup before each balancing cycle.
Android-based visual guidance makes measurement and correction results easier to interpret.
3D laser positioning supports accurate adhesive-weight installation.
Split and hidden-weight functions support cleaner alloy wheel finishes.
Low-noise inverter motor operation, self-diagnosis and self-calibration support day-to-day workshop use.
BALANCING RESULT DISPLAY
PRODUCT DETAILS
Android interface with LCD display and independent keypad.
Automatic wheel diameter, distance and width measurement.
Dynamic, static, ALU and ALU-S balancing modes.
3D laser target tracking for adhesive-weight placement.
Motor positioning brake and LED work light.
GUIDED WEIGHT PLACEMENT
SPECIFICATIONS
Maximum wheel diameter: 1,100 mm (44 in)
Maximum wheel weight: 70 kg (154 lb)
Rim diameter range: 254-610 mm (10-24 in)
Rim width range: 38-508 mm (1.5-20 in)
Machine weight: 106 kg
Power supply: Contact YOKI to confirm the required electrical configuration.
OPTIONAL EQUIPMENT
Motorcycle wheel adaptor
Isuzu light-truck cone
Toyota Prado cone
APPLICATIONS
Passenger vehicle wheel balancing
Tyre service, mechanical repair and general automotive workshops
Alloy wheel balancing and adhesive-weight applications
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm availability, electrical configuration and suitability for your workshop.
