OVERVIEW
A multi-cassette shortwave infrared curing lamp for professional body shop refinishing. The larger curing area, adjustable stand and controlled timer and temperature range support repeatable drying across larger repair zones.
FEATURES
Multi-cassette lamp assembly for a larger controlled curing area.
Adjustable stand and lamp positioning for workshop flexibility.
10-60 minute timer and 40-100 C temperature range.
Shortwave infrared operation for professional automotive refinishing workflow.
SPECIFICATIONS
Product rating: 3000W
Curing time range: 10-60 minutes
Temperature range: 40-100 C
Infrared tube length: 500 mm
Curing area: 1,200 x 1,000 mm
External lead length: 2 m
Package 1: 720 x 235 x 860 mm
Package 2: 720 x 55 x 1,120 mm
Package 3: 1,540 x 170 x 650 mm
Gross weight: 53.6 kg
APPLICATIONS
Larger-area automotive paint drying
Professional body shop refinishing and panel repair
Primer, paint and clear-coat curing where suitable
YOKI SUPPORT
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm current stock, electrical configuration and suitability for your workshop.

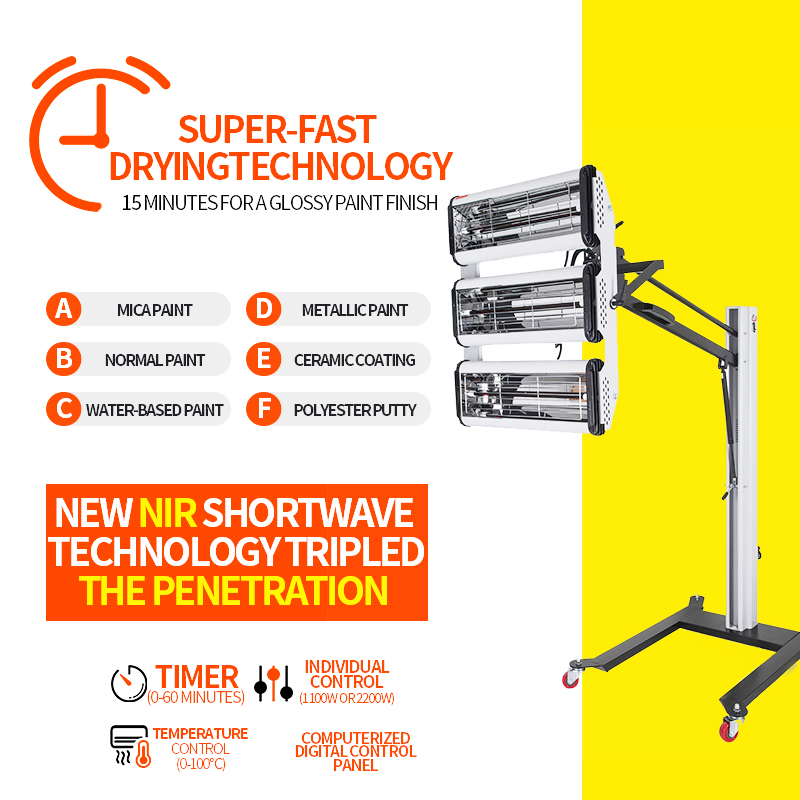

YS PL-3ES infrared paint curing lamp product image
YS PL-3ES infrared paint curing lamp product image
