OVERVIEW

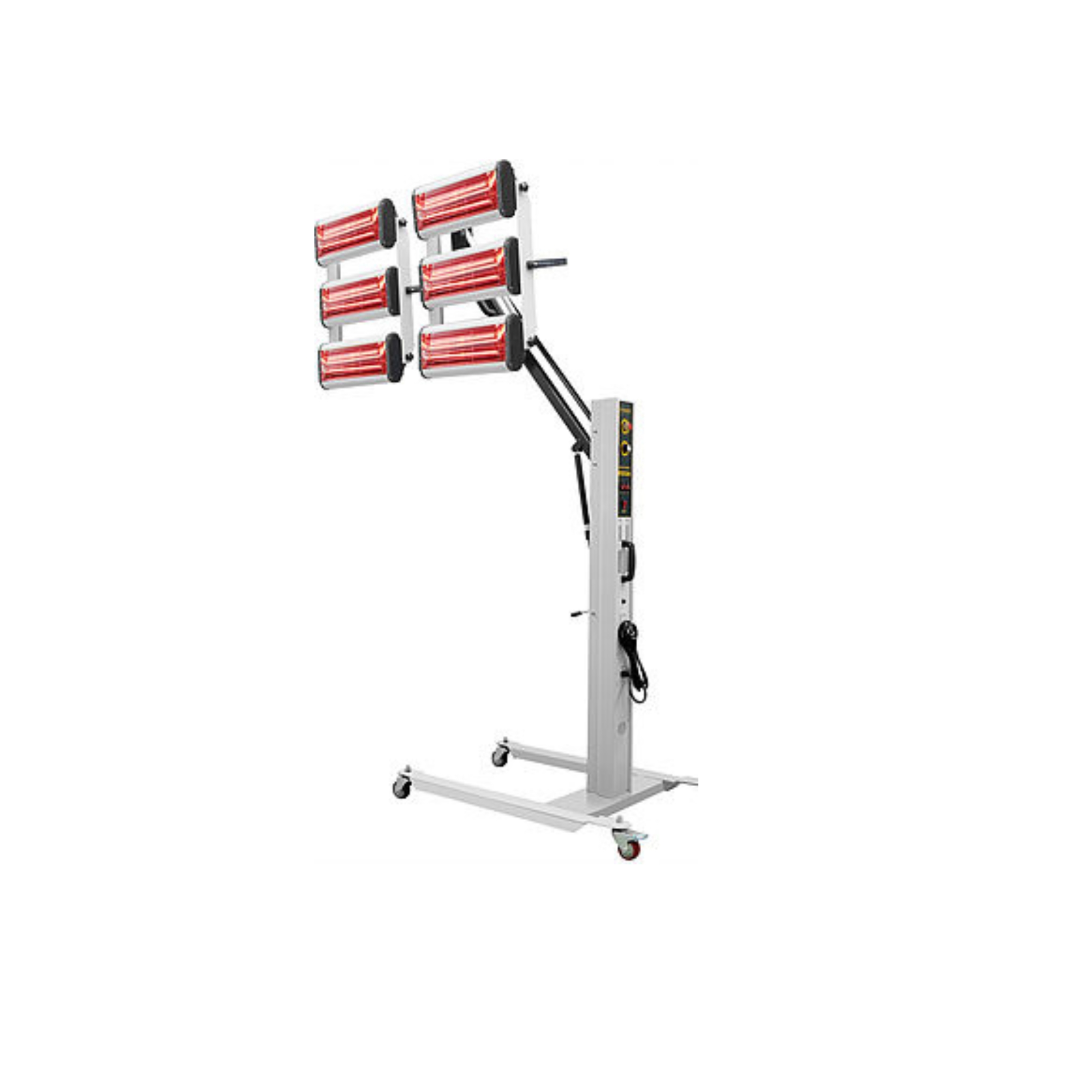

A high-output multi-cassette shortwave infrared curing system for larger body shop repair areas. The wide curing coverage, adjustable structure and controlled timer and temperature range support professional refinishing workflow.
FEATURES
High-output multi-cassette layout for larger controlled curing areas.
Adjustable structure and lamp positioning for body shop workflow.
10-60 minute timer and 40-100 C temperature range.
Shortwave infrared operation for professional automotive refinishing.
SPECIFICATIONS
Product rating: 6000W
Curing time range: 10-60 minutes
Temperature range: 40-100 C
Infrared tube length: 500 mm
Curing area: 2,000 x 1,000 mm
External lead length: 2 m
Lamp packages: 2 x 1,370 x 240 x 840 mm
Stand package: 930 x 55 x 1,250 mm
Base package: 1,540 x 170 x 650 mm
Gross weight: 73 kg
APPLICATIONS
Large-area automotive paint drying
Professional body shop refinishing and panel repair
High-throughput workshop curing workflow
YOKI SUPPORT
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm current stock, electrical configuration and suitability for your workshop.
