ROADBUCK R800 III Wireless Portable 3D Wheel Aligner

OVERVIEW

The ROADBUCK R800 III is a compact lift-mounted 3D wheel aligner designed to keep the camera system close to the vehicle. The short shooting distance supports precise measurement while helping preserve usable floor space around the alignment bay.

Five sets of 5 MP cameras work with oil- and water-resistant targets. Multi-screen linkage and Bluetooth interconnection support a flexible workshop workflow.

Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm availability, electrical requirements and compatibility with your alignment lift before ordering.

COMPACT LIFT-MOUNTED DESIGN

The cameras are installed on the vehicle lift, reducing the camera-to-target distance and the operating space required around the bay. This arrangement is intended for workshops that need a compact alignment layout without a conventional long camera beam.

CAMERA SYSTEM AND CONNECTIVITY

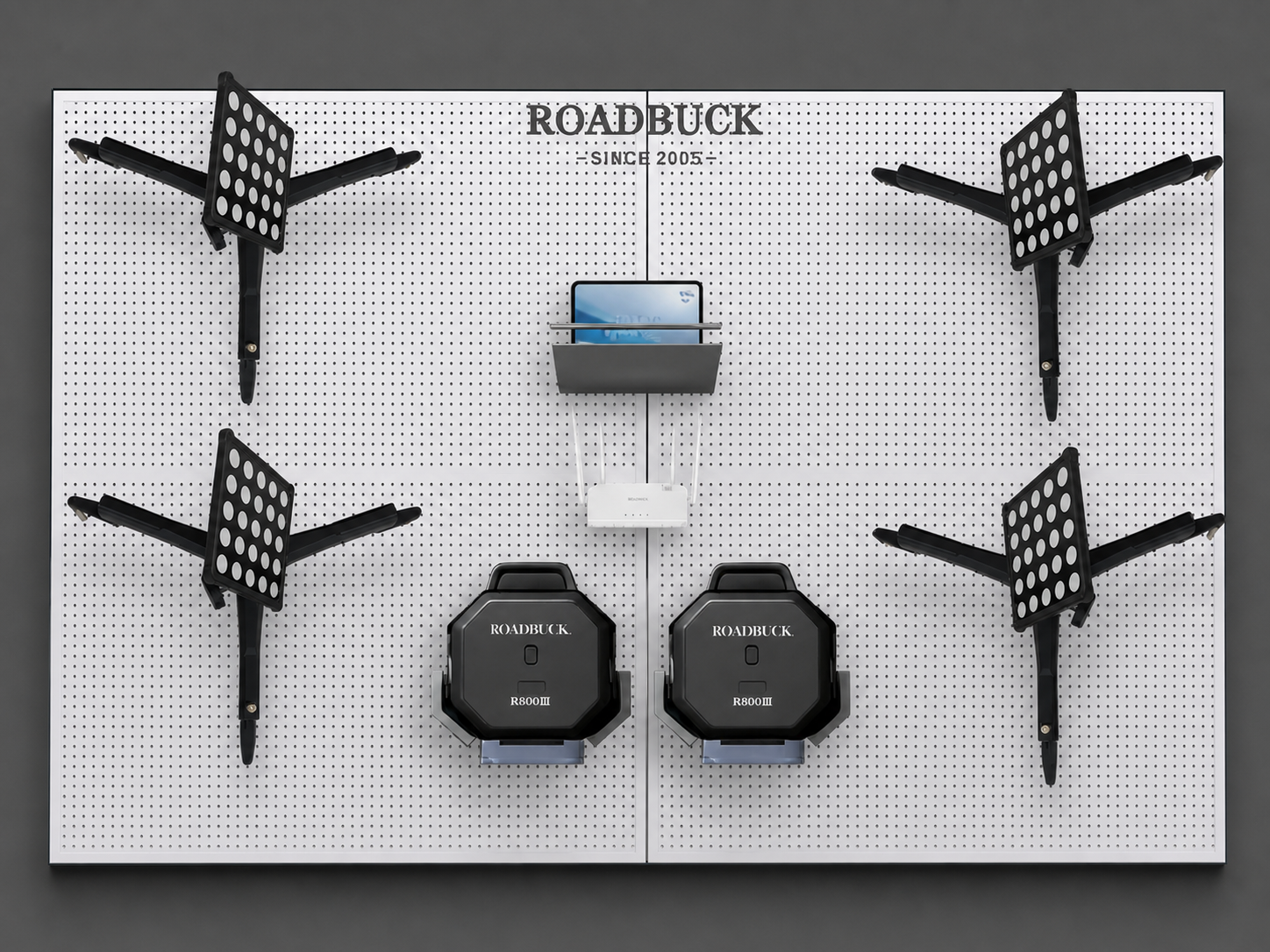

The supplier specification lists five sets of 5 MP cameras, 3D measurement software, multi-screen linkage, Bluetooth interconnection and oil- and water-resistant alignment targets.

MEASUREMENT SPECIFICATIONS

Front toe: precision +/-0.02 degrees; measurement range +/-20 degrees.

Rear toe: precision +/-0.02 degrees; measurement range +/-20 degrees.

Front camber: precision +/-0.02 degrees; measurement range +/-15 degrees.

Rear camber: precision +/-0.02 degrees; measurement range +/-15 degrees.

Front SAI: precision +/-0.02 degrees; measurement range +/-26 degrees.

Front caster: precision +/-0.02 degrees; measurement range +/-26 degrees.

Rear thrust angle: precision +/-0.02 degrees; measurement range +/-5 degrees.

WORKSHOP APPLICATION

Suitable for passenger vehicle wheel alignment bays using a compatible alignment lift. YOKI can assist with equipment selection, installation planning and ongoing workshop equipment support.
