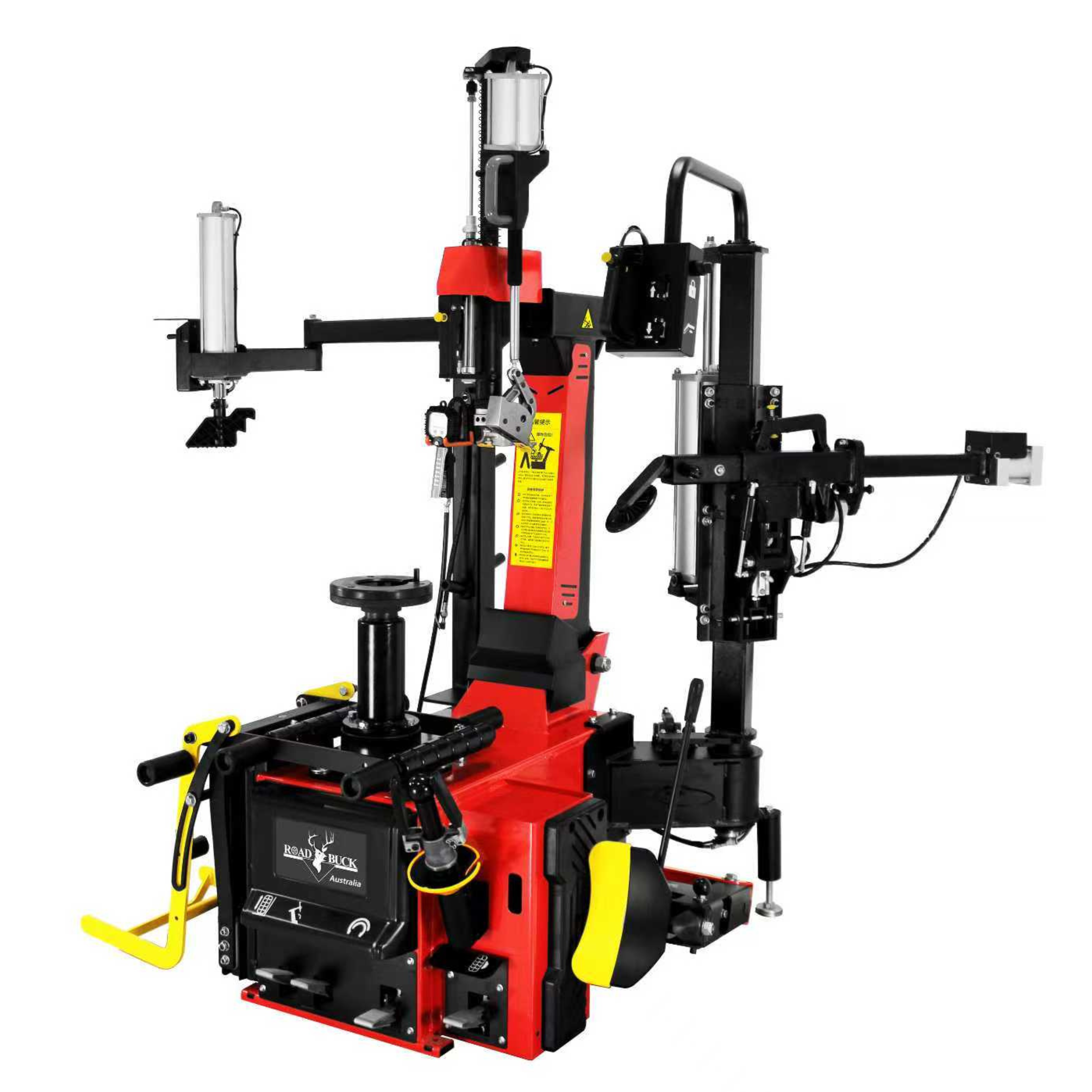

YOKI OP-Master 9120 Leverless Centre Clamping Tyre Changer
YOKI OP-Master 9120 leverless centre clamping tyre changer
POA
Tyres up to 1,120 mm diameter; rim range 10-26 in
Pneumatic wheel lift and positioning device
110V 1PH / 220V 1PH or 3PH / 380V 3PH

Tilt-back leverless tyre changer with centre clamping and wheel lift.
OVERVIEW
The YOKI OP-Master 9120 is a leverless centre-clamping tyre changer for professional passenger-vehicle tyre service. Its pneumatic tilt-back arm opens the working area, while the centre-clamping layout supports controlled mounting and demounting on premium and low-profile tyres.
A high-strength 55 x 55 mm square arm, third-generation pneumatic duck-head assembly, 125 mm bidirectional assist-arm cylinder and pneumatic wheel lift combine to reduce manual handling during demanding tyre work.
WORKSHOP BENEFITS
Pneumatic tilt-back operation creates a more open working area around the wheel.
The telescopic tyre-press roller and 180-degree rotating assist arm support bead control from multiple working angles.
A welded column base, fully welded cabinet and 4 mm steel panels provide a stable machine structure.
The pneumatic wheel lift raises, rotates and positions the wheel to reduce lifting effort for the operator.
PRODUCT DETAILS
Pneumatic tilt-back arm for increased operating space
55 x 55 mm high-strength push-and-pull square arm
Third-generation pneumatic flip demounting head
125 mm bidirectional auxiliary-arm cylinder
Pneumatic telescopic tyre-press roller and 180-degree rotating press arm
Multi-angle adjustable bead-separation shovel
Pneumatic wheel lifting and positioning device
PNEUMATIC ASSIST-ARM CONTROL
The pneumatic assist assembly supports bead handling around the wheel. The telescopic pressing roller and rotating press arm provide support from different working positions.

Pneumatic assist-arm assembly and operator controls.
BIDIRECTIONAL CYLINDER AND PRESSING ROLLER
The 125 mm bidirectional auxiliary-arm cylinder works with the telescopic roller and 180-degree rotating press arm. Together they support controlled bead positioning during mounting and demounting.

Assist cylinder, pressing arm and telescopic roller.
CENTRE-CLAMPING WORK AREA
The centre-clamping layout supports the wheel at the hub, leaving access around the rim and tyre. The welded cabinet and column base form the machine structure below the working area.

Centre-clamping platform and lower machine structure.
PNEUMATIC WHEEL HANDLING
The wheel lift assists lifting, rotating and positioning the wheel. These views show the wheel-handling arrangement; use the model-specific manual for the operating procedure.

Wheel-lifting and positioning views.
DESIGN AND WORKSHOP DETAILS
The pneumatic tilt-back arm moves clear of the wheel to open the mounting and demounting area. The 55 x 55 mm square arm works with the third-generation pneumatic demounting head.
A telescopic pressing roller and 180-degree rotating press arm provide support from different positions. The pneumatic wheel lift assists lifting, rotating and positioning the wheel.
The column base and cabinet are welded together, and the chassis uses 4 mm steel panels. The bead-breaker shovel can be adjusted to different working angles.
SPECIFICATIONS
Working air pressure: 8-12 bar
Maximum tyre width: 406 mm (16 in)
Maximum tyre diameter: 1,120 mm (44 in)
Rim width range: 38-508 mm (1.5-20 in)
Rim diameter range: 254-660 mm (10-26 in)
Motor power: 220V 1.1 kW / 380V 0.75 kW
Power supply: 110V 1PH / 220V 1PH or 3PH / 380V 3PH
Net / gross weight: 425 / 515 kg
Packing size: 1,400 x 1,200 x 1,860 mm
SUPPLIED ACCESSORIES
Supplier-listed standard accessories include a hub-locking shaft, cone and duck-head protective cases, BMW and Prado cones, and a plastic crowbar. A tyre clip and hub reverse fixture are shown as optional equipment.
APPLICATIONS
Passenger-vehicle tyre service
Low-profile and premium wheel tyre fitting
Tyre retailers, mechanical workshops and wheel specialists
Supplied and supported in Australia by YOKI Auto Equipment. Contact YOKI to confirm stock availability, electrical configuration and suitability for your workshop.
