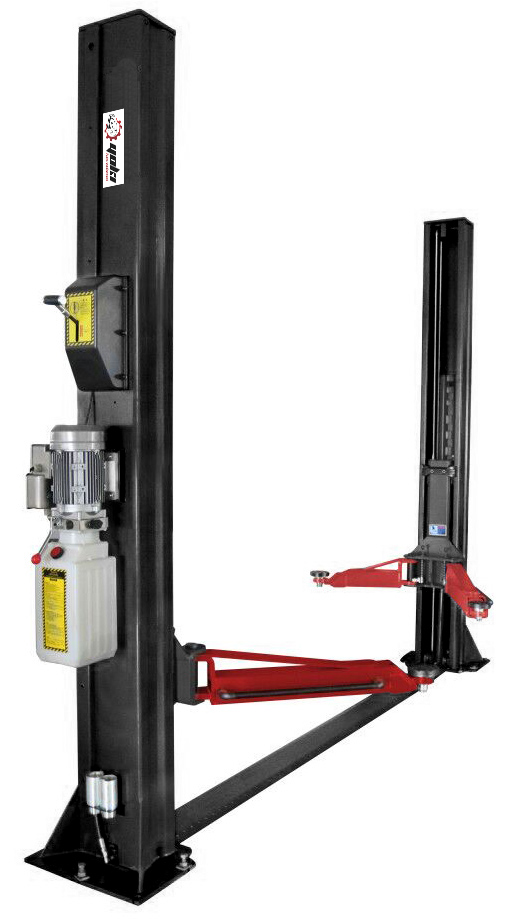

YS 7701 Plus Baseplate Two-post Hoist

OVERVIEW

The YS 7701 Plus is a 4,000 kg baseplate two-post hoist designed for workshops, garages and service centres that need dependable lifting performance in spaces with limited ceiling height.

Unlike clear-floor models, the baseplate design removes the need for an overhead crossbeam, making it a practical choice for workshops where ceiling clearance is limited. With a 2.86 m post distance and low 90 mm minimum pad height, the YS 7701 Plus is suitable for a wide range of passenger cars, SUVs, vans and selected light commercial vehicles.

This model is built for daily workshop use, with manual hydraulic lifting, single-point mechanical lock release, automatic arm locking devices and reinforced welded support gussets for added column strength. The 3-stage front arms and 2-stage rear arms provide flexible arm positioning, helping technicians work safely across different vehicle body styles.

With a powder-coated finish, emergency lowering support and reliable safety systems, the YS 7701 Plus is a strong all-round baseplate hoist for workshops looking for a compact, practical and professional 4T lifting solution.

SPECIFICATIONS

Model: YS 7701 Plus

Type: Baseplate two-post hoist

Lifting system: Manual hydraulic

Rated lifting capacity: 4,000 kg

Maximum lifting height: 1,980 mm

Minimum pad height: 90 mm

Machine height: 2,845 mm

Post distance: 2,860 mm

Lifting time: ≤50 seconds

Motor power: 2.2 kW

Net weight: 620 kg

Power supply: 415V / 240V, 50Hz

Operating temperature: 5°C - 40°C

Operating humidity: 30% - 95%

Noise level: <76 dB

Finish: Powder-coated

FEATURES

- 4,000 kg rated lifting capacity for cars, SUVs, vans and selected light commercial vehicles

- Baseplate design suitable for low-ceiling workshops and garages

- No overhead crossbeam, making it easier to install where ceiling height is limited

- 3-stage front arms and 2-stage rear arms for flexible vehicle positioning

- Single-point mechanical lock release system

- Automatic arm locking devices for improved lifting stability

- Reinforced welded support gussets for increased column strength

- 2.86 m post distance for practical access around wider vehicles

- Low 90 mm minimum pad height, suitable for many low-clearance vehicles

- Explosion-proof throttle valve for controlled lowering performance

- Wide rubber door guards to help protect vehicle doors from contact damage

- Emergency lowering support through down solenoid valve

- Aluminium motor designed to reduce overheating risk

- Premium powder-coated finish for long-term durability

- Tested for workshop safety and reliable lifting performance

APPLICATIONS

Ideal for automotive workshops, mechanical repair shops, tyre and suspension workshops, inspection bays and private garages where ceiling height is limited.

Suitable for general servicing, brake and wheel work, suspension repairs, underbody inspections and regular workshop maintenance on passenger cars, SUVs, vans and selected light commercial vehicles.
