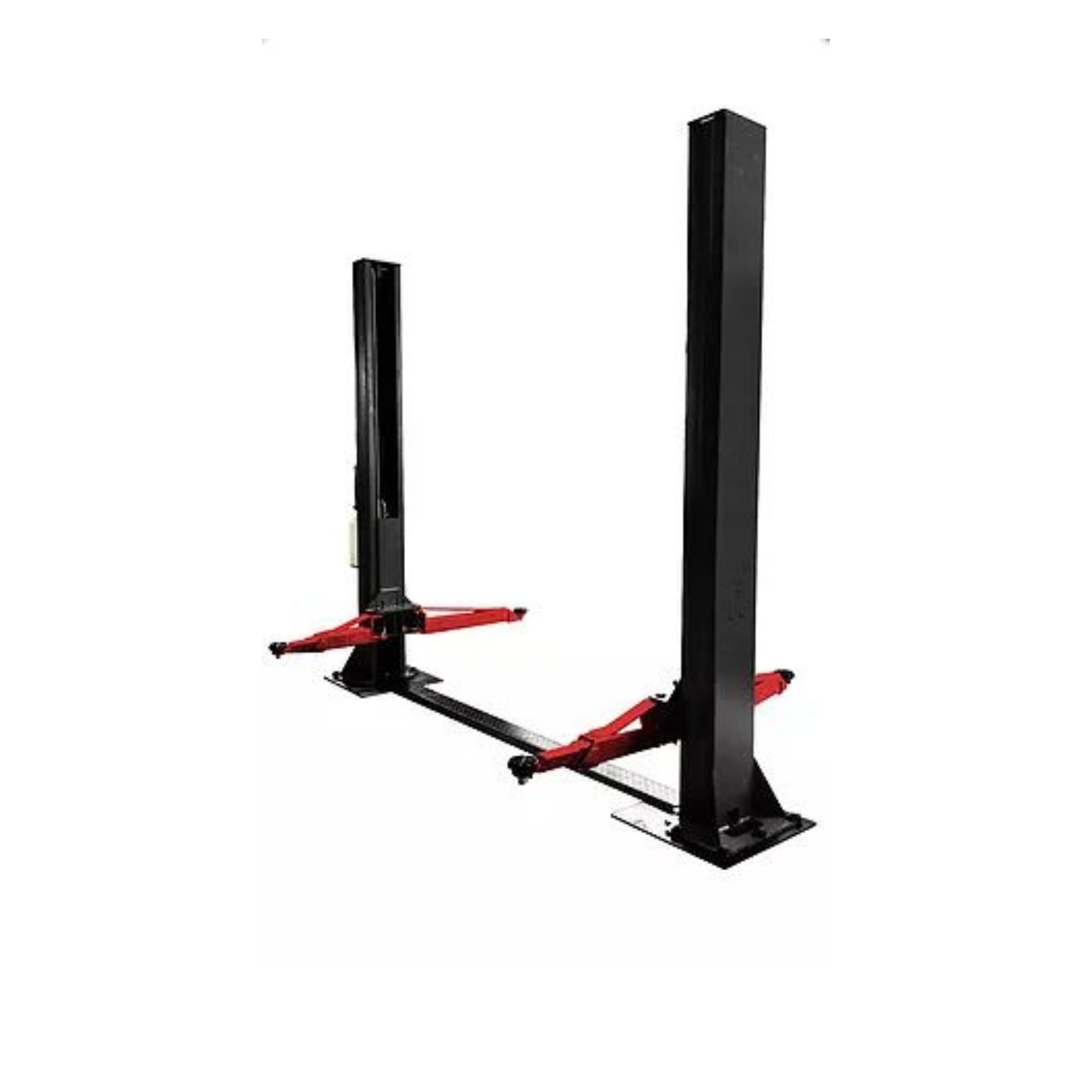

YS 7703 Plus Baseplate Two-post Hoist

OVERVIEW

The YS 7703 Plus is a 4,500 kg baseplate two-post hoist designed for workshops that need extra lifting capacity while working within a lower ceiling environment.

The baseplate configuration removes the need for an overhead crossbeam, making this model a practical option for mechanical workshops, tyre shops and private garages where ceiling height may limit clear-floor installations.

With a 4.5T rated capacity, 2.86 m post distance, low 90 mm minimum pad height and flexible arm configuration, the YS 7703 Plus is suited to a wide range of passenger vehicles, SUVs, vans and selected light commercial vehicles.

Reinforced column support, automatic arm locking devices, controlled lowering and a durable powder-coated finish make it a dependable all-round hoist for daily workshop lifting tasks.

SPECIFICATIONS

Model: YS 7703 Plus

Type: Baseplate two-post hoist

Lifting system: Manual hydraulic

Rated lifting capacity: 4,500 kg

Maximum lifting height: 1,980 mm

Minimum pad height: 90 mm

Machine height: 2,845 mm

Post distance: 2,860 mm

Lifting time: ≤50 seconds

Motor power: 2.2 kW

Net weight: 650 kg

Power supply: 415V / 240V, 50Hz

Operating temperature: 5°C - 40°C

Operating humidity: 30% - 95%

Noise level: <76 dB

FEATURES

- 4,500 kg rated lifting capacity for heavier workshop applications

- Baseplate design suitable for low-ceiling workshops and garages

- 3-stage front arms and 2-stage rear arms for flexible vehicle positioning

- Single-point mechanical lock release system

- Automatic arm locking devices for improved vehicle stability

- Reinforced welded support gussets for increased column strength

- Low 90 mm minimum pad height for many low-clearance vehicles

- Explosion-proof throttle valve for controlled lowering performance

- Emergency lowering support through down solenoid valve

- Premium powder-coated finish for long-term durability

APPLICATIONS

Ideal for automotive workshops, mechanical repair shops, tyre and suspension workshops, inspection bays and garages that need a higher-capacity baseplate hoist in a low-ceiling space.

Suitable for servicing, brake and wheel work, suspension repairs, underbody inspections and regular maintenance on passenger cars, SUVs, vans and selected light commercial vehicles.
