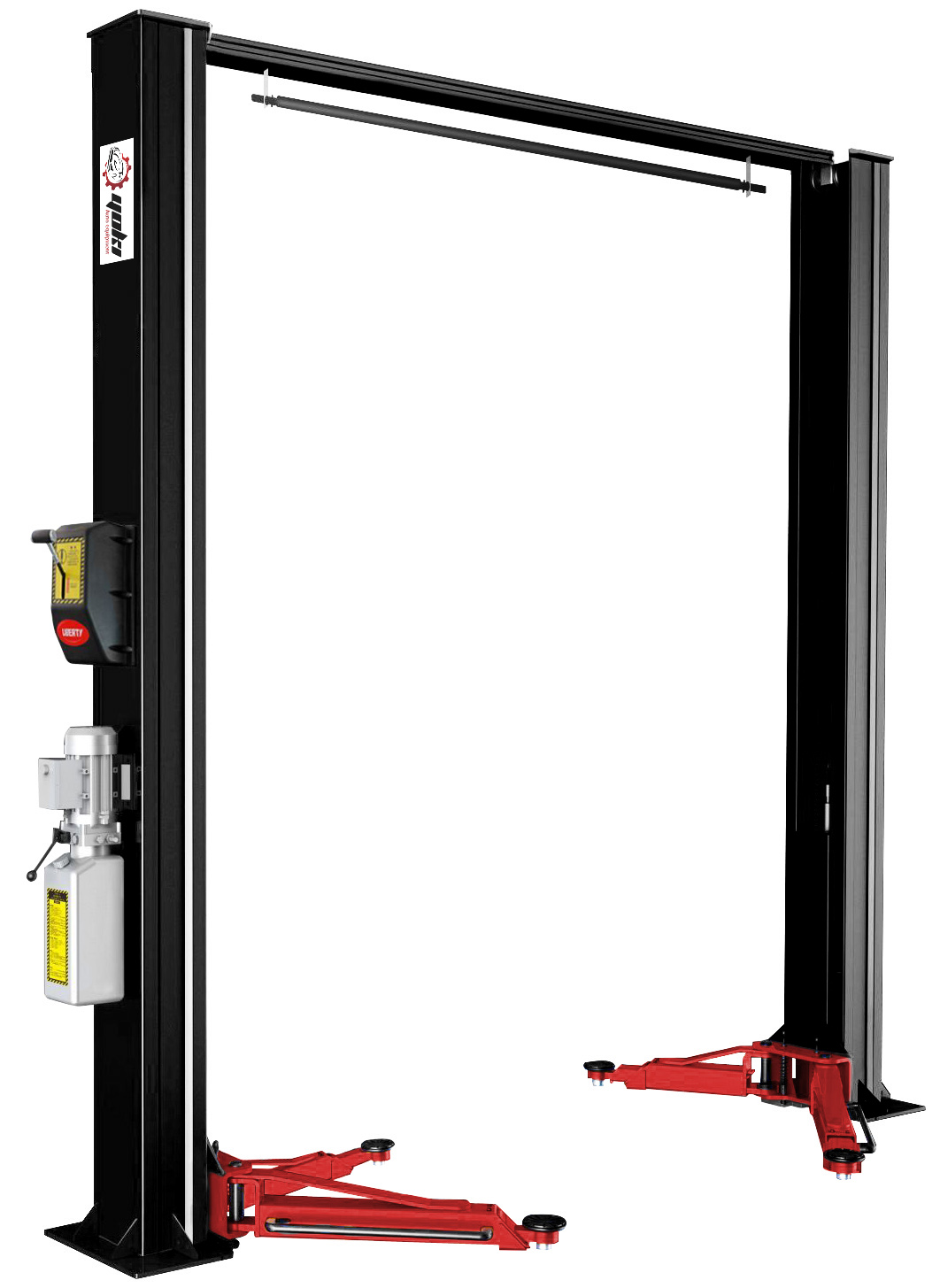

YS 7702 Plus Clear-floor Two-post Hoist
YS 7702 Plus
$3,750 AUD inc. GST
4,000 kg
Max. lifting height: 1,980 mm
Minimum pad height: 90 mm
240V or 415V options available, 50Hz
4T clear-floor two-post hoist designed for professional workshops, offering open under-vehicle access, strong lifting performance and reliable safety locking for cars, SUVs and light commercial vehicles.
OVERVIEW
The YS 7702 Plus is a 4,000 kg clear-floor two-post hoist designed for professional automotive workshops, service centres and serious garage setups that require strong lifting performance with clean, unobstructed floor access.
Its overhead clear-floor design keeps the working area open between the posts, making it easier to move tool trolleys, transmission jacks and workshop equipment under the vehicle.
The low minimum lifting pad height, automatic arm locking devices, padded overhead shut-off protection and wide rubber door guards support safer daily workshop operation.
SPECIFICATIONS
Model: YS 7702 Plus
Type: Clear-floor two-post hoist
Lifting system: Manual hydraulic
Rated lifting capacity: 4,000 kg
Maximum lifting height: 1,980 mm
Minimum pad height: 90 mm
Machine height: 3,800 mm
Post distance: 2,850 mm
Lifting time: <=50 seconds
Motor power: 2.2 kW
Net weight: 720 kg
Power supply: 415V / 240V, 50Hz
Operating temperature: 5C - 40C
Operating humidity: 30% - 95%
Noise level: <76 dB
Finish: Powder-coated
FEATURES
- 4,000 kg rated lifting capacity for cars, SUVs and light commercial vehicles
- Clear-floor overhead design keeps the bay open and unobstructed
- 3-stage front arms and 2-stage rear arms for wider positioning range
- Manual safety lock release system
- Automatic arm locking devices for improved vehicle stability
- Reinforced welded support gussets for increased column strength
- Padded overhead shut-off system to help prevent vehicle roof damage
- Wide rubber door guards to reduce the risk of door contact damage
- Low 90 mm minimum pad height for many low-clearance vehicles
- Aluminium motor designed to reduce overheating risk
- Emergency lowering support through down solenoid valve
- Premium powder-coated finish for long-term durability
- Tested for safety and reliability under dynamic and static load conditions
APPLICATIONS
Ideal for professional mechanical workshops, automotive service centres, tyre and suspension shops, detailing workshops and private garages that need a reliable 4T clear-floor lifting solution.
Suitable for general servicing, inspections, wheel and brake work, suspension repairs, underbody access and regular workshop maintenance on passenger cars, SUVs and selected light commercial vehicles.
