YS 7702E Plus Clear-floor Two-post Hoist
YS 7702E Plus
$4,150 AUD inc. GST
4,000 kg
Max. lifting height: 1,980 mm
Minimum pad height: 90 mm
240V or 415V options available, 50Hz

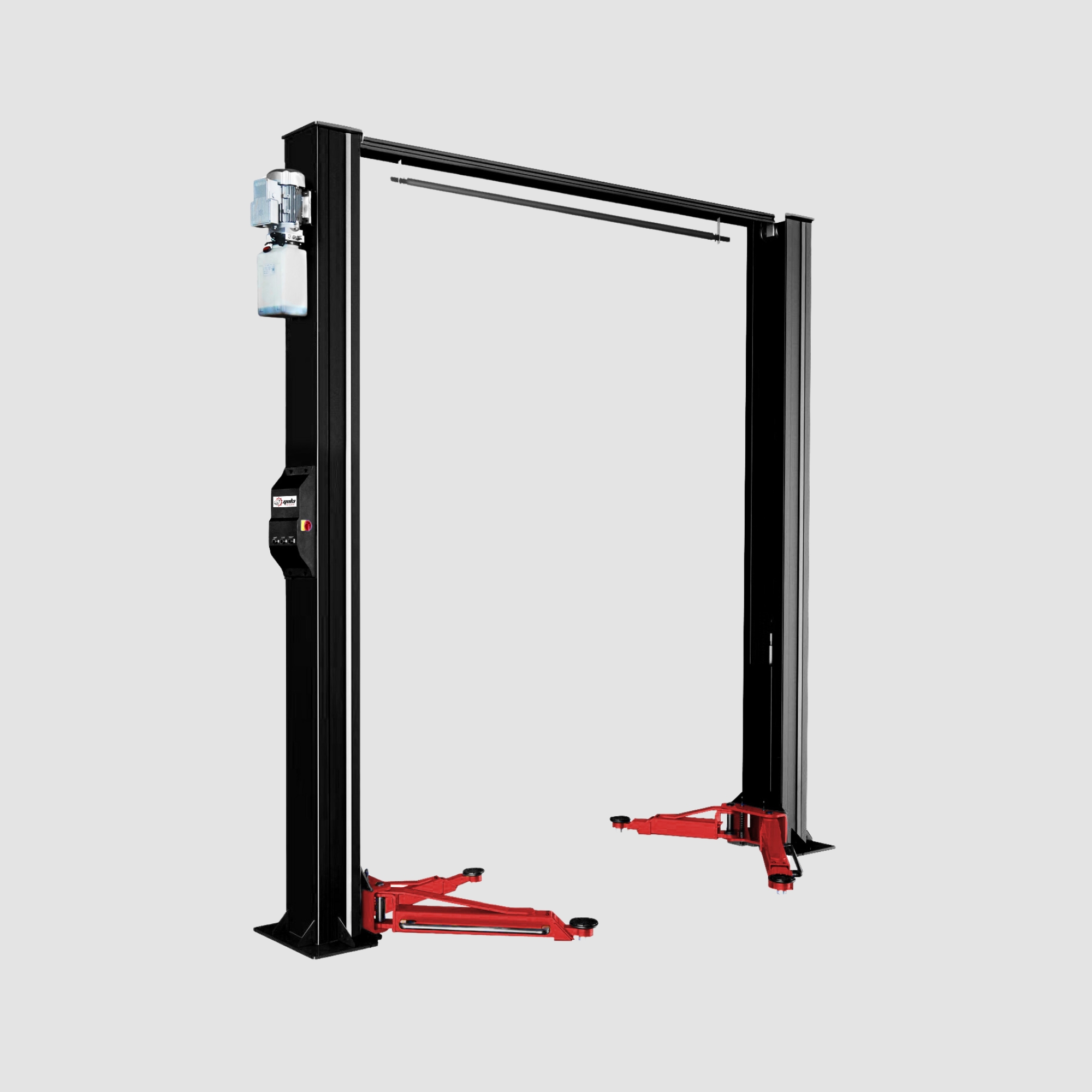

4T electric hydraulic clear-floor two-post hoist with electrical safety lock release, open under-vehicle access and professional workshop lifting performance.
OVERVIEW
The YS 7702E Plus is a 4,000 kg electric hydraulic clear-floor two-post hoist designed for professional workshops that want open under-vehicle access with the convenience of electrical safety lock release.
Its overhead clear-floor structure keeps the bay free from a floor plate, allowing technicians to move oil drainers, transmission jacks, tool trolleys and other workshop equipment through the centre of the lift more easily.
Compared with the manual clear-floor model, the YS 7702E Plus adds electrical lock release operation for a more convenient daily workflow while retaining strong 4T lifting capacity, low 90 mm pad height and practical arm positioning for cars, SUVs and selected light commercial vehicles.
With reinforced welded support, padded overhead shut-off protection, automatic arm locking devices and a powder-coated finish, this model is a polished choice for workshops looking for a professional clear-floor hoist with upgraded operation.
SPECIFICATIONS
Model: YS 7702E Plus
Type: Electric clear-floor two-post hoist
Lifting system: Electric hydraulic
Rated lifting capacity: 4,000 kg
Maximum lifting height: 1,980 mm
Minimum pad height: 90 mm
Machine height: 3,800 mm
Post distance: 2,850 mm
Lifting time: ≤50 seconds
Motor power: 2.2 kW
Net weight: 720 kg
Power supply: 415V / 240V, 50Hz
Operating temperature: 5°C - 40°C
Operating humidity: 30% - 95%
Noise level: <76 dB
FEATURES
- 4,000 kg rated lifting capacity for cars, SUVs and light commercial vehicles
- Electric hydraulic operation with electrical safety lock release
- Clear-floor overhead design keeps the working bay open and unobstructed
- 3-stage front arms and 2-stage rear arms for wider positioning range
- Automatic arm locking devices for improved lifting stability
- Padded overhead shut-off system to help prevent vehicle roof damage
- Reinforced welded support gussets for increased column strength
- Low 90 mm minimum pad height, suitable for many low-clearance vehicles
- Emergency lowering support through down solenoid valve
- Premium powder-coated finish for long-term durability
APPLICATIONS
Ideal for professional automotive workshops, dealership service bays, mechanical repair shops and tyre or suspension workshops that need a clear-floor hoist with more convenient lock release operation.
Suitable for general servicing, inspections, brake and wheel work, suspension repairs, underbody access and regular maintenance on passenger cars, SUVs and selected light commercial vehicles.
